UG: Inflatable Buoyancy Units

5:1 design WLL factor (strops 7:1).

Fitted with multiple pressure relief valves to ensure safety during use.

Unique end-strop design prevents stress and bulging on the extremities of the IBU.

Buoyancy of individual or multiple units can be increased or decreased as required from the surface.

Ideally suited to extreme shallow waters

Webbing harness includes multiple fixed steel lifting rings fitted with spacing straps.

Integral end strops to prevent rotation.

2 x 3/4 inch BSP standard inflation/deflation valves with 316 stainless steel male Camlock adapter as standard.

Leafield Marine high flow pressure relief valves (PRVs).

Delivered ready for immediate use with universally compliant documentation: IBU specific log book containing certification, service records and operating manual.

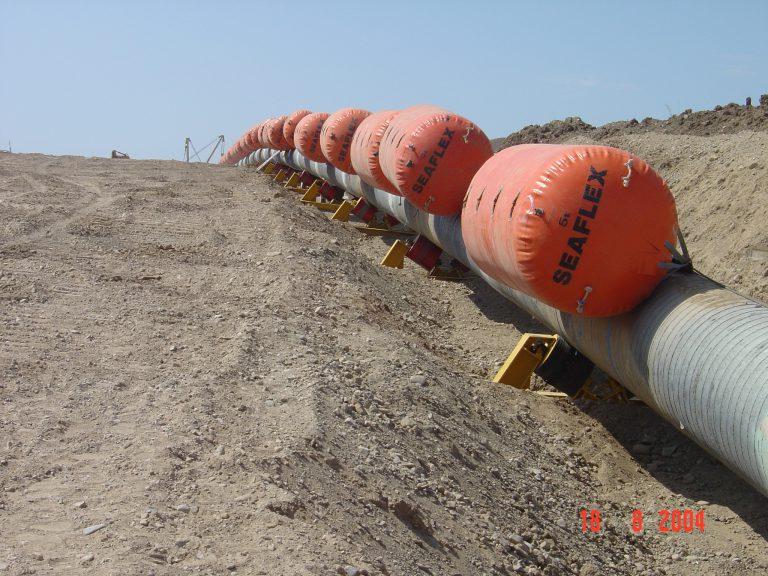

Suited for installation buoyancy on pipeline float-outs, beach pulls and river crossings.

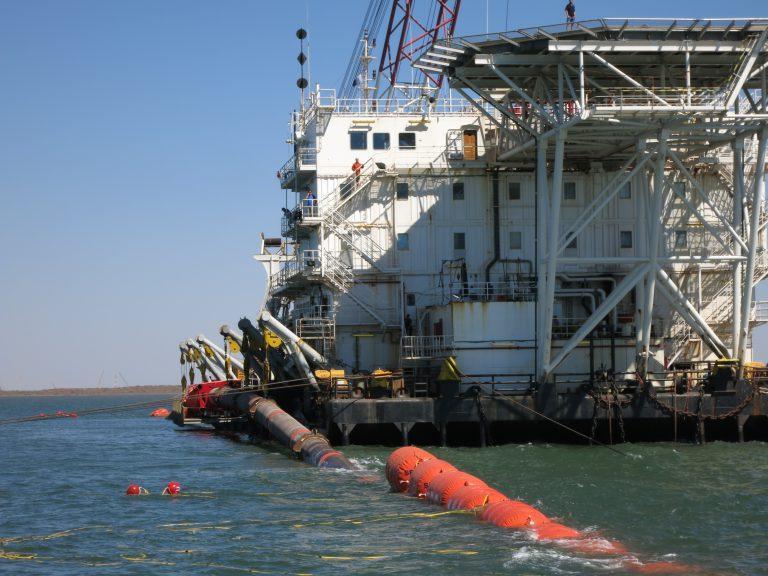

Ideal for pipelaying, shallow-water salvage and towing.

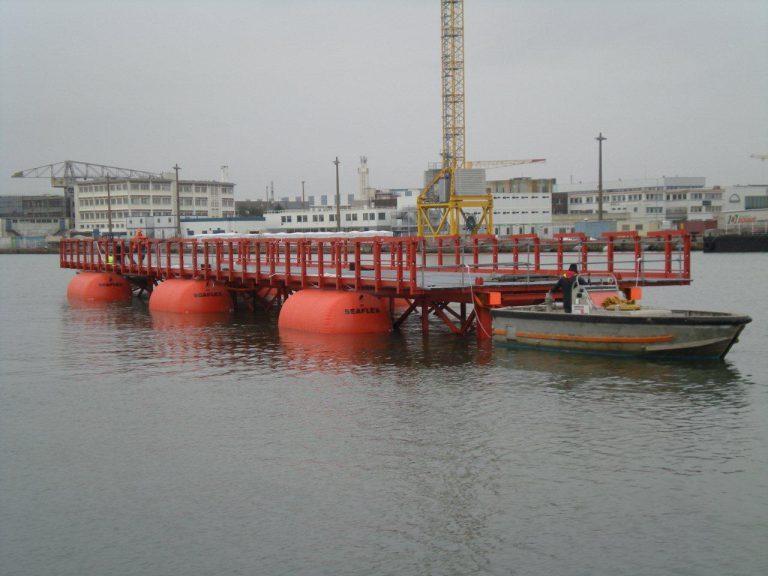

Can be used for vessel and platform draught reduction.
