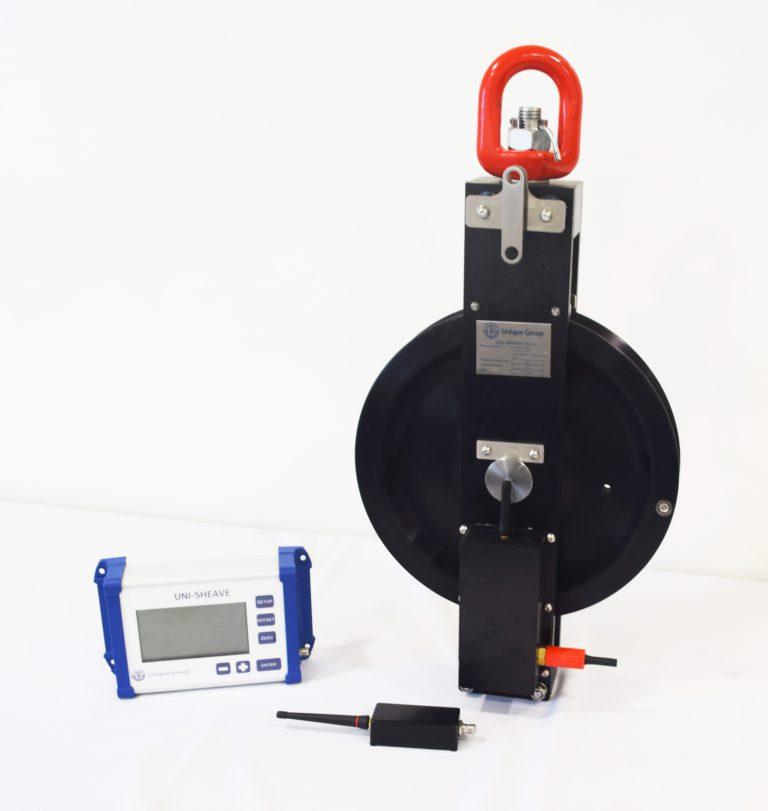

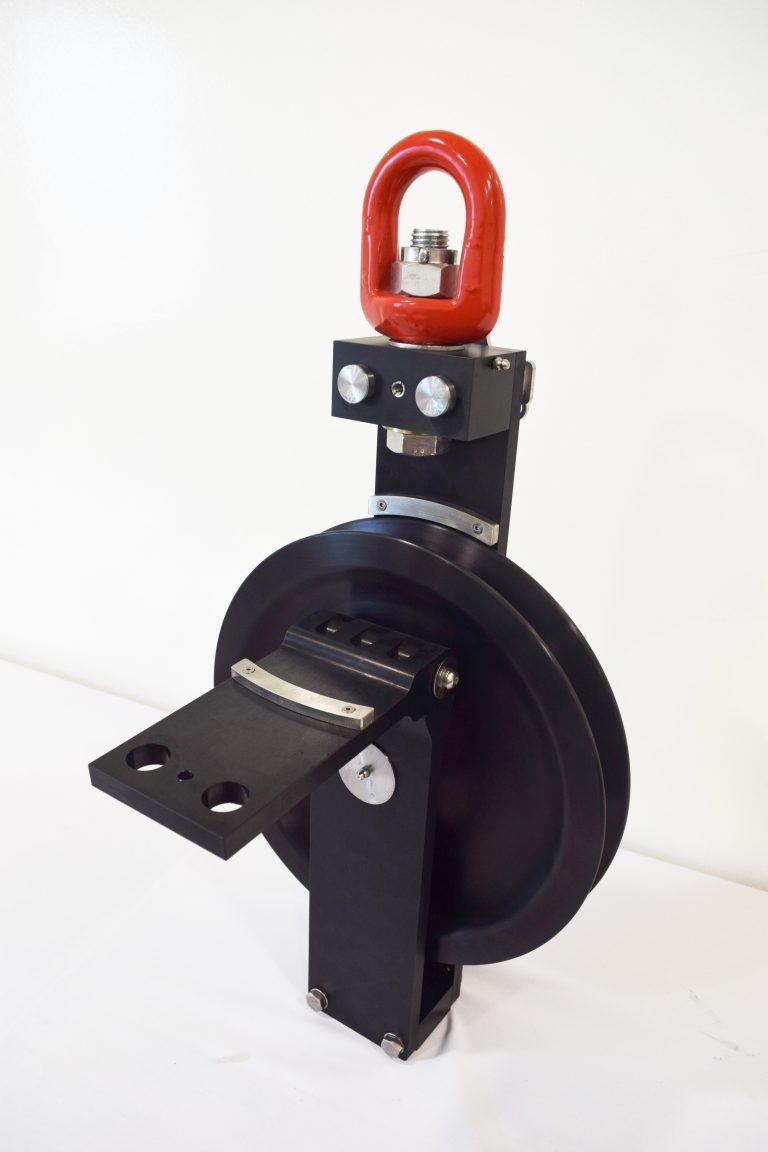

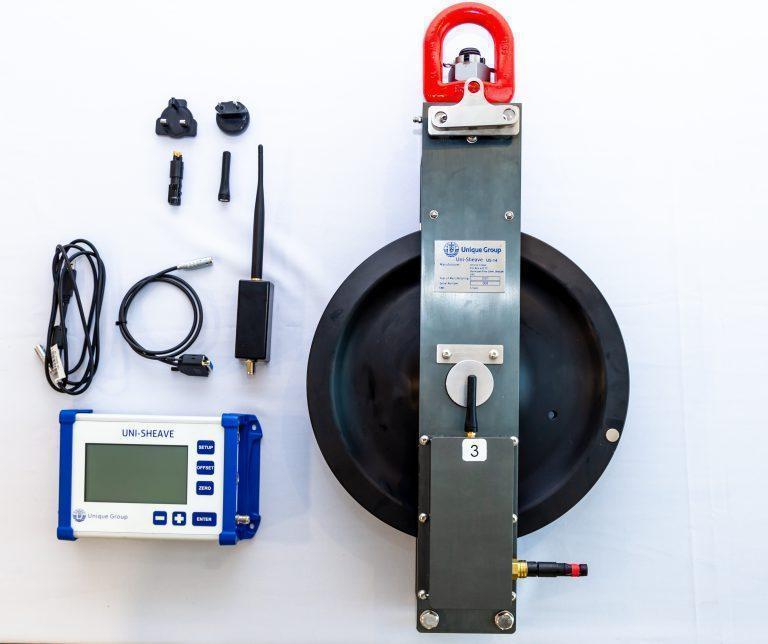

UG: Uni-Sheave
Developed by Unique Group to meet the demand for increased back deck survey equipment, the Uni-Sheave is a reliable and accurate system for measuring the cable passing over the wheel. Developed to help Oceanographers, Hydrographers and Surveyors who require an accurate measurement of deployed cable in conjunction with applications including Side Scan Tow Fish, Magnetometers, ROVs, CTD Systems, Undulating Towed Vehicles, Sub-bottom Profilers, etc.
Features
Made from aluminium and stainless steel
The safe working load for the Uni-sheave is 5 tonne at head fitting
Equipped with a rechargeable lithium battery
The radio range is maximum 300 metres
Standby life for the Uni-sheave is 10 years
Specifications
Height: 692 mm
Sheave Wheel Diameter: 350mm
Overall width is 145.5mm plus 55mm bracket
Maximum cable diameter is 11.4mm and it can be customised during the order time
Transmits power up to 250Mw
The frequency for the counter transmitter is 433Mhz, 868Mhz or 900Mhz
Applications
Used by oceanographers, hydrographers and surveyor who require accurate measurement of deployed cable
Side Scan Tow Fish
ROVs
CTD Systems
Undulating Towed Vehicles
Sub-bottom Profilers
-
Bluesoul: I-Line Open Loop Scrubber System
Survey Equipment -
Bawat: Portable Ballast Water Management System
Survey Equipment -
Bluesoul: I-line / Inline Scrubber System
Survey Equipment -

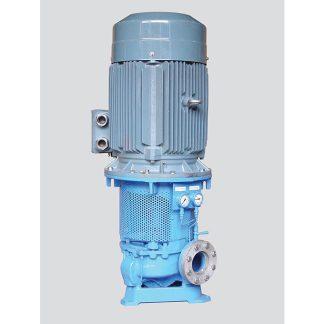

Hamworthy Model CG: Centrifugal Pumps
