Buckleys ST-AC Pro: AC Spark Tester Standard Kit
Buckleys ST-AC Pro: AC Spark Tester Standard Kit
Survey Equipment

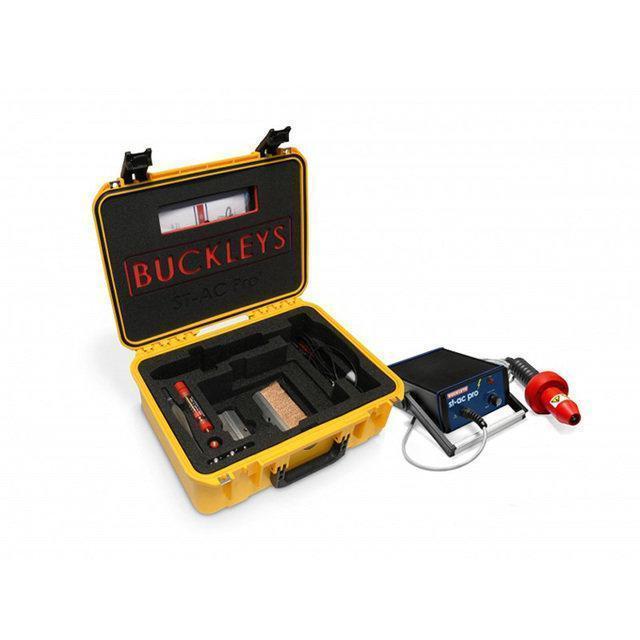

Buckleys ST-AC Pro: AC Spark Tester Standard Kit

Availability:

The ST-AC Pro’ AC high frequency portable AC spark tester provides a quick and effective means of inspecting thicker coatings and linings. It can detect flaws and defects in non-conductive membranes up to 30mm in thickness and is extensively used in the petrochemical, pipeline construction, plastic and rubber manufacturing industries.

Features

Strong aluminium case and mains powered

Adjustable output voltage

Illuminated ‘output-on’ indicator

2 metre test probe handle lead

Large carrying handle/desk stand

Specifications

Output voltage range: 10-55kV peak

high-frequency AC

Output frequency: 100kHz ring pulsed at 50Hz @ 50Hz mains supply

Mains voltage: 110 or 230V AC 50/60Hz

Packed weight (standard kit): 6Kg

Dimensions (packed): 370mm x 360mm x 300mm

Applications

Widely used for testing butt-welded and overlap joints

Ideal for the plastics and rubber industries

Suitable for petro-chemical and pipeline construction industries.
